Concealed Hinges
Zinc Plated Steel or Stainless Steel AISI 304
Left-hand and right-hand application is possible. Ideal for metal enclosures and machinery covers. Spring-loaded hinge for easy door removal

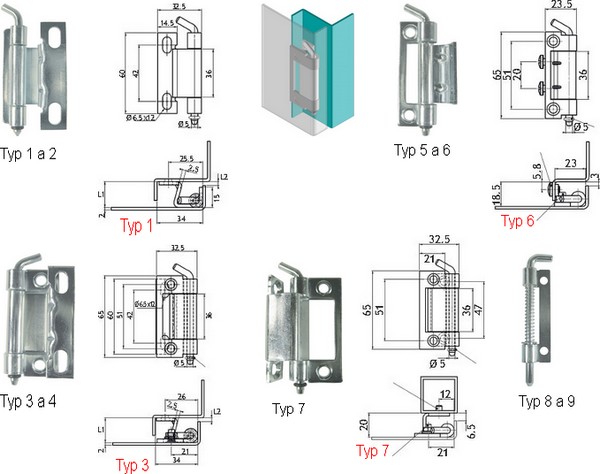

Type 1-6: Hinge rotational angle of 120°
Type 7: Hinge rotational agle of 135°
Type 8 & 9: Suitable for internally mounted doors
| rendelési szám | típus | L(mm) | Mennyiség/csomag | ár/csomag/db | Ár/db |
|---|---|---|---|---|---|
| 491854 | 1 | 20 | 100 db | 2312 HUF | 3799 HUF |
| 491855 | 1 | 24 | 100 db | 2312 HUF | 3799 HUF |
| 491856 | 2 | 20 | 100 db | 2312 HUF | 3799 HUF |
| 491857 | 2 | 24 | 100 db | 2312 HUF | 3799 HUF |
| 491858 | 3 | 20 | 100 db | 2312 HUF | 3799 HUF |
| 491859 | 3 | 24 | 100 db | 2378 HUF | 3907 HUF |
| 491860 | 4 | 20 | 100 db | 2378 HUF | 3907 HUF |
| 491861 | 4 | 24 | 100 db | 2378 HUF | 3907 HUF |
| 491862 | 5 | - | 100 db | 2087 HUF | 3429 HUF |
| 491863 | 6 | - | 100 db | 2180 HUF | 3582 HUF |
| 491864 | 7 | - | 100 db | 2378 HUF | 3907 HUF |
| 491865 | 8 | - | 50 db | 987 HUF | 1622 HUF |
| 491866 | 9 | - | 50 db | 1253 HUF | 2058 HUF |
| rendelési szám | típus | L(mm) | Mennyiség/csomag | Price for package (db) | Ár/db |
|---|---|---|---|---|---|
| 491913 | 1 | 20 | 100 db | 3473 HUF | 5433 HUF |
| 491914 | 1 | 24 | 100 db | 3473 HUF | 5433 HUF |
| 491915 | 2 | 20 | 100 db | 3473 HUF | 5433 HUF |
| 491916 | 2 | 24 | 100 db | 3473 HUF | 5433 HUF |
| 491917 | 3 | 20 | 100 db | 3473 HUF | 5433 HUF |
| 491918 | 3 | 24 | 100 db | 3589 HUF | 5614 HUF |
| 491919 | 4 | 20 | 100 db | 3589 HUF | 5614 HUF |
| 491920 | 4 | 24 | 100 db | 3589 HUF | 5614 HUF |
| 491921 | 5 | - | 100 db | 2777 HUF | 4344 HUF |
| 491922 | 6 | - | 100 db | 2893 HUF | 4525 HUF |
| 491923 | 7 | - | 100 db | 5211 HUF | 8155 HUF |
| 491924 | 8 | - | 50 db | 1650 HUF | 2710 HUF |
| 491925 | 9 | - | 50 db | 2644 HUF | 4343 HUF |
Prices are without VAT. If specified order number, please, it will add it to the selected type of goods. We will be glad to send you any quantity.
