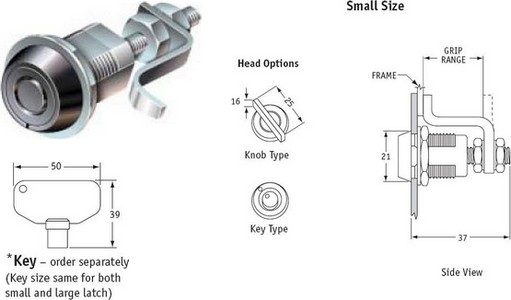

Compression Action Panel Latches
Black or Silver Powder-Coated Die-cast Zinc.
Lock turns clockwise, closes latch and then compresses the door tight shut.
Compression action gives vibration resistance.
.Two head options available in two sizes.
Small Size -Black| rendelési szám | Grip Range | Max. Panel Thickness | db/csomag | ár/db | ár/db |
|---|
| Knob Type | Key Type | Min. | Max. |
|---|
| 500086 | 500078 | 9,5 | 12,7 | 13 | 1 | 15286 HUF | 15286 HUF |
| 500087 | 500079 | 12,7 | 15,9 | 13 | 1 | 15286 HUF | 15286 HUF |
| 500088 | 500080 | 15,9 | 19 | 13 | 1 | 15291 HUF | 15291 HUF |
| 500089 | 500081 | 19 | 22,2 | 13 | 1 | 15286 HUF | 15286 HUF |
Large Size - Black| rendelési szám | Pawl Forwand | Pawl Reversed | Max. Panel Thickness | db/csomag | ár/db | ár/db |
|---|
| 8mm Hex | Key Type | Min. | Max. | Min. | Max. |
|---|
| 500093 | 500099 | 11,4 | 27,2 | 66,3 | 76,2 | 18 | 1 | 16495 HUF | 16495 HUF |
| 500094 | 500100 | 25,4 | 41,1 | 52,6 | 68,3 | 18 | 1 | 16495 HUF | 16495 HUF |
| 500095 | 500101 | 38,9 | 54,6 | 38,9 | 54,6 | 18 | 1 | 16495 HUF | 16495 HUF |
Large Size - Silver| rendelési szám | Pawl Forwand | Pawl Reversed | db/csomag | ár/db | ár/db |
|---|
| 8mm Hex | Key Type | Min. | Max. | Min. | Max. |
|---|
| 500096 | 500102 | 11,4 | 27,2 | 66,3 | 76,2 | 1 | 17003 HUF | 17003 HUF |
| 500097 | 500103 | 25,4 | 41,1 | 52,6 | 68,3 | 1 | 17003 HUF | 17003 HUF |
| 500098 | 500104 | 38,9 | 54,6 | 38,9 | 54,6 | 1 | 17003 HUF | 17003 HUF |
* Key - order separately (Key size same for both small and large latch)
| rendelési szám | típus | db/csomag | ár/db |
|---|
| 500092 | Key for Small Size | 1 | 4181 HUF |
| 500105 | Key for Large Size | 1 | 4181 HUF |
Optional Pull Tab - order separately. Pull Tab - Large Size only
| rendelési szám | db/csomag | ár/db |
|---|
| 500106 | 1 | 2543 HUF |
Prices are without VAT. If specified order number, please, it will add it to the selected type of goods. We will be glad to send you any quantity.
