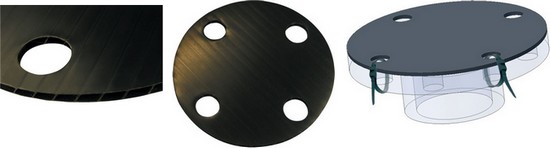

Flange Protection Disc

Flange Protection Disc

PolyCor™ Corrugated LDPE
Provides simple, cost-effective protection for flanges.
Covers full flange face - applied by strapping cable ties through bolt holes.
Wide range covers variety of sizes and pressure ratings.
DIN Flanges DN 10 to DN 600 - Pressure Groups PN 6, 10, 16, 25 and 40.
ANSI Flanges 1/2 to 32 - Pressure Groups 150, 300, 600 and 900 lbs.



DIN - PN 6 Range
rendelési számNominal
Diameter		méretek (mm)Mennyiség/csomagár/csomag/dbÁr/db
Outside DiameterBolt Circle
Diameter		Bolt
Hole Size
491795DN 1075,050,011,050 db328 HUF538 HUF
491796DN 1580,055,011,050 db350 HUF578 HUF
491797DN 2090,065,011,050 db344 HUF564 HUF
491798DN 25100,075,011,050 db475 HUF778 HUF
491799DN 32120,090,014,050 db447 HUF731 HUF
491800DN 40130,0100,014,050 db463 HUF759 HUF
491801DN 50140,0110,014,050 db552 HUF906 HUF
491802DN 65160,0130,014,050 db564 HUF927 HUF
491803DN 80190,0150,018,050 db684 HUF1123 HUF
491804DN 100210,0170,018,050 db758 HUF1244 HUF
491805DN 125240,0200,018,050 db931 HUF1534 HUF
491806DN 150265,0225,018,025 db1122 HUF1844 HUF
491807DN 200320,0280,018,025 db1444 HUF2373 HUF
491808DN 250375,0335,018,025 db1809 HUF2972 HUF
491809DN 300440,0395,022,025 db2411 HUF3963 HUF
491810DN 350490,0445,022,025 db3028 HUF5972 HUF
491811DN 400540,0495,022,010 db3177 HUF5219 HUF
491812DN 500645,0600,022,010 db4216 HUF6925 HUF
491813DN 600755,0705,024,010 db5800 HUF9528 HUF



DIN - PN 10 Range
rendelési számNominal
Diameter		méretek (mm)Mennyiség/csomagPrice for
package (db)		Ár/db
Outside DiameterBolt Circle
Diameter		Bolt
Hole Size
491814DN 1090,060,014,050 db341 HUF561 HUF
491815DN 1595,065,014,050 db359 HUF592 HUF
491816DN 20105,075,014,050 db378 HUF622 HUF
491817DN 25115,085,014,050 db430 HUF705 HUF
491818DN 32140,0100,018,050 db552 HUF906 HUF
491819DN 40150,0110,018,050 db566 HUF930 HUF
491820DN 50165,0125,018,050 db589 HUF969 HUF
491821DN 65185,0145,018,050 db684 HUF1123 HUF
491822DN 80200,0160,018,050 db734 HUF1209 HUF
491823DN 100220,0180,018,050 db788 HUF1294 HUF
491824DN 125250,0210,018,050 db950 HUF1563 HUF
491825DN 150285,0240,022,025 db1281 HUF2102 HUF
491826DN 200340,0295,022,025 db1502 HUF2469 HUF
491827DN 250395,0350,022,025 db2009 HUF3303 HUF
491828DN 300445,0400,022,025 db2484 HUF4081 HUF
491829DN 350505,0460,022,025 db3141 HUF5159 HUF
491830DN 400565,0515,026,010 db3241 HUF5323 HUF
491831DN 500670,0620,026,010 db4517 HUF7419 HUF
491832DN 600780,0725,027,010 db5972 HUF9808 HUF


DIN - PN 16 Range
rendelési számNominal
Diameter		méretek (mm)Mennyiség/csomagPrice for
package (db)		Ár/db
Outside DiameterBolt Circle
Diameter		Bolt
Hole Size
491814DN 1090,060,014,050 db341 HUF561 HUF
491815DN 1595,065,014,050 db359 HUF592 HUF
491816DN 20105,075,014,050 db378 HUF622 HUF
491817DN 25115,085,014,050 db430 HUF705 HUF
491818DN 32140,0100,018,050 db552 HUF906 HUF
491819DN 40150,0110,018,050 db566 HUF930 HUF
491820DN 50165,0125,018,050 db589 HUF969 HUF
491821DN 65185,0145,018,050 db684 HUF1123 HUF
491822DN 80200,0160,018,050 db734 HUF1209 HUF
491823DN 100220,0180,018,050 db788 HUF1294 HUF
491824DN 125250,0210,018,050 db950 HUF1563 HUF
491825DN 150285,0240,022,025 db1281 HUF2102 HUF
492142DN 200340,0295,022,025 db1567 HUF2577 HUF
492143DN 250405,0355,026,025 db2111 HUF3467 HUF
492144DN 300460,0410,026,025 db2606 HUF4283 HUF
492145DN 350520,0470,026,010 db3289 HUF5400 HUF
492146DN 400580,0525,030,010 db3513 HUF5767 HUF
492147DN 500715,0650,033,010 db4972 HUF8173 HUF
492148DN 600840,0770,033,010 db6997 HUF11494 HUF


DIN - PN 25 Range
rendelési számNominal
Diameter		méretek (mm)Mennyiség/csomagPrice for
package (db)		Ár/db
Outside DiameterBolt Circle
Diameter		Bolt
Hole Size
491814DN 1090,060,014,050 db344 HUF561 HUF
491815DN 1595,065,014,050 db359 HUF592 HUF
491816DN 20105,075,014,050 db378 HUF622 HUF
491817DN 25115,085,014,050 db430 HUF705 HUF
491818DN 32140,0100,018,050 db552 HUF906 HUF
491819DN 40150,0110,018,050 db566 HUF930 HUF
491820DN 50165,0125,018,050 db589 HUF969 HUF
492149DN 65185,0145,018,050 db684 HUF1123 HUF
492150DN 80200,0160,018,050 db734 HUF1209 HUF
492151DN 100235,0190,022,050 db955 HUF1567 HUF
492152DN 125270,0220,026,025 db1155 HUF1897 HUF
492153DN 150300,0250,026,025 db1413 HUF2319 HUF
492154DN 200360,0310,026,025 db1752 HUF2877 HUF
492155DN 250425,0370,030,025 db2411 HUF3963 HUF
492156DN 300485,0430,030,025 db2731 HUF5389 HUF
492157DN 350555,0490,033,010 db3388 HUF5567 HUF
492158DN 400620,0550,036,010 db4072 HUF6694 HUF
492159DN 500730,0660,036,010 db5389 HUF8852 HUF
492160DN 600845,0770,036,010 db7117 HUF11691 HUF


DIN - PN 40 Range
rendelési számNominal
Diameter		méretek (mm)Mennyiség/csomagPrice for
package (db)		Ár/db
Outside DiameterBolt Circle
Diameter		Bolt
Hole Size
491814DN 1090,060,014,050 db341 HUF561 HUF
491815DN 1595,065,014,050 db359 HUF592 HUF
491816DN 20105,075,014,050 db378 HUF622 HUF
491817DN 25115,085,014,050 db430 HUF705 HUF
491818DN 32140,0100,018,050 db552 HUF906 HUF
491819DN 40150,0110,018,050 db566 HUF930 HUF
491820DN 50165,0125,018,050 db589 HUF969 HUF
492149DN 65185,0145,018,050 db684 HUF1123 HUF
492150DN 80200,0160,018,050 db734 HUF1209 HUF
492151DN 100235,0190,022,050 db955 HUF1567 HUF
492152DN 125270,0220,026,025 db1155 HUF1897 HUF
492153DN 150300,0250,026,025 db1413 HUF2319 HUF
492161DN 200375,0320,030,025 db1809 HUF2972 HUF
492162DN 250450,0385,033,025 db2992 HUF4919 HUF
492163DN 300515,0450,033,010 db3219 HUF5289 HUF
492164DN 350580,0510,036,010 db3513 HUF5767 HUF
492165DN 400660,0585,039,010 db4517 HUF7419 HUF
492166DN 500755,0670,042,010 db5631 HUF9253 HUF


ANSI - 150 lbs Range
rendelési számNominal
Diameter		méretek (mm)Mennyiség/csomagPrice for
package (db)		Ár/db
Outside DiameterBolt Circle
Diameter		Bolt
Hole Size
4917001/2"88,960,315,950 db341 HUF561 HUF
4917013/4"98,469,915,950 db359 HUF592 HUF
4917021"108,079,415,950 db397 HUF653 HUF
4917031 1/4"117,5 88,915,950 db430 HUF705 HUF
4917041 1/2"127,098,415,950 db463 HUF759 HUF
4917052"152,4120,719,150 db566 HUF930 HUF
4917062 1/2"177,8139,719,150 db636 HUF1042 HUF
4917073"190,5152,419,150 db684 HUF1123 HUF
4917083 1/2"215,9177,819,150 db778 HUF1278 HUF
4917094"228,6190,519,150 db833 HUF1369 HUF
4917105"254,0215,922,250 db967 HUF1591 HUF
4917116"279,4241,322,225 db1191 HUF1953 HUF
4917128"342,9298,522,225 db1567 HUF2577 HUF
49171310"406,4362,025,425 db2111 HUF3467 HUF
49171412"482,6431,825,425 db2731 HUF5389 HUF
49171514"533,4476,328,610 db2984 HUF4903 HUF
49171616"596,9539,828,610 db3650 HUF5997 HUF
49171718"635,0577,931,810 db4072 HUF6694 HUF
49171820"698,5635,031,810 db4828 HUF7931 HUF
49171922"749,3698,534,910 db5466 HUF10775 HUF
49172024"812,8743,034,910 db6334 HUF10405 HUF
49172126"870,0806,534,910 db7181 HUF11800 HUF
49172228"927,1863,634,910 db8083 HUF13281 HUF
49172330"984,3914,434,910 db9020 HUF14820 HUF
49172432"1060,5977,941,310 db10358 HUF17016 HUF
49172534"1111,31028,741,310 db11300 HUF18563 HUF
49172636"1168,41085,941,310 db12406 HUF20383 HUF


ANSI - 300 lbs Range
rendelési számNominal
Diameter		méretek (mm)Mennyiség/csomagPrice for
package (db)		Ár/db
Outside DiameterBolt Circle
Diameter		Bolt
Hole Size
4917271/2"95,366,715,950 db358 HUF589 HUF
4917283/4"117,582,619,150 db430 HUF705 HUF
4917291"123,888,919,150 db452 HUF741 HUF
4917301 1/4"133,498,419,150 db486 HUF798 HUF
4917311 1/2"155,6114,322,250 db566 HUF930 HUF
4917322"165,1127,019,150 db581 HUF956 HUF
4917332 1/2"190,5149,222,250 db684 HUF1123 HUF
4917343"209,6168,322,250 db758 HUF1244 HUF
4917353 1/2"228,6184,222,250 db869 HUF1427 HUF
4917364"254,0200,022,250 db967 HUF1591 HUF
4917375"279,4235,022,225 db1191 HUF1953 HUF
4917386"317,5269,922,225 db1406 HUF2313 HUF
4917398"381,0330,225,425 db1916 HUF3150 HUF
49174010"444,5387,428,625 db2411 HUF3963 HUF
49174112"520,7450,931,810 db2861 HUF4700 HUF
49174214"584,2514,431,810 db3513 HUF5767 HUF
49174316"647,7571,534,910 db4216 HUF6925 HUF
49174418"711,2628,734,910 db4991 HUF8200 HUF
49174520"774,7685,834,910 db5800 HUF9528 HUF
49174622"838,2743,041,310 db6953 HUF11419 HUF
49174724"914,4812,841,310 db7883 HUF12950 HUF
49174826"971,6876,344,510 db8802 HUF14458 HUF
49174928"1035,1939,844,510 db9908 HUF16275 HUF
49175030"1092,2997,047,610 db10942 HUF17978 HUF
49175132"1149,41054,150,810 db12166 HUF19984 HUF
49175234"1206,51104,950,810 db13033 HUF21413 HUF


ANSI - 600 lbs Range
rendelési számNominal
Diameter		méretek (mm)Mennyiség/csomagPrice for
package (db)		Ár/db
Outside DiameterBolt Circle
Diameter		Bolt
Hole Size
4917271/2"95,366,715,950 db358 HUF589 HUF
4917283/4"117,582,619,150 db430 HUF705 HUF
4917291"123,888,919,150 db450 HUF741 HUF
4917301 1/4"133,498,419,150 db486 HUF798 HUF
4917311 1/2"155,6114,322,250 db566 HUF930 HUF
4917322"165,1127,019,150 db581 HUF956 HUF
4917332 1/2"190,5149,222,250 db684 HUF1123 HUF
4917343"209,6168,322,250 db758 HUF1244 HUF
4917533 1/2"228,6184,225,450 db873 HUF1436 HUF
4917544"273,1215,925,425 db1155 HUF1897 HUF
4917555"330,2266,728,625 db1484 HUF2441 HUF
4917566"355,6292,128,625 db1652 HUF2713 HUF
4917578"419,1349,331,825 db2205 HUF3625 HUF
49175810"508,0431,834,925 db2970 HUF4878 HUF
49175912"558,8489,034,910 db3241 HUF5323 HUF
49176014"590,6527,138,110 db3716 HUF6106 HUF
49176116"685,8603,341,310 db4670 HUF7672 HUF
49176218"743,0654,144,510 db5389 HUF8852 HUF
49176320"812,8723,944,510 db6334 HUF10405 HUF
49176422"870,0777,944,510 db7181 HUF11800 HUF
49176524"939,8838,250,810 db8281 HUF13606 HUF
49176626"1016,0914,450,810 db9384 HUF15419 HUF
49176728"1073,2965,254,010 db10600 HUF17417 HUF
49176830"1130,31022,454,010 db11663 HUF19161 HUF
49176932"1193,81079,560,310 db12600 HUF20698 HUF


ANSI - 900 lbs Range
rendelési számNominal
Diameter		méretek (mm)Mennyiség/csomagPrice for
package (db)		Ár/db
Outside DiameterBolt Circle
Diameter		Bolt
Hole Size
4917701/2"120,782,622,250 db439 HUF722 HUF
4917713/4"130,288,922,250 db475 HUF780 HUF
4917721"149,2101,625,450 db545 HUF894 HUF
4917731 1/4"158,8123,825,450 db564 HUF927 HUF
4917741 1/2"177,8123,828,650 db636 HUF1042 HUF
4917752"215,9165,125,450 db778 HUF1278 HUF
4917762 1/2"244,5190,528,650 db917 HUF1508 HUF
4917773"241,3190,525,450 db903 HUF1484 HUF
4917784"292,1235,031,825 db1263 HUF2073 HUF
4917795"349,3279,434,925 db1738 HUF2856 HUF
4917806"381,0317,531,825 db1916 HUF3150 HUF
4917818"469,9393,738,125 db2627 HUF4316 HUF
49178210"546,1469,938,110 db3113 HUF5113 HUF
49178312"609,6533,438,110 db3786 HUF6219 HUF
49178414"641,4558,841,310 db4145 HUF6814 HUF
49178516"704,9616,044,510 db4900 HUF8050 HUF
49178618"787,4685,850,810 db5972 HUF9808 HUF
49178720"857,3749,354,010 db6997 HUF11494 HUF
49178824"1041,4901,766,710 db10022 HUF16463 HUF
49178926"1085,9952,573,010 db10775 HUF17700 HUF
49179028"1168,41022,479,410 db12406 HUF20383 HUF


Az árak áfa nélkül értendőek, és a rendeléskor történő fizetésre vonatkoznak.

Cég
Megrendelés *
Azonosítószám
Adóazonosító szám
Az Ön neve *
Telefonszáma *
E-mail címe *
Számlázási cím *
Kézbesítési cím
 CZ   PL   SK   UK   DE
 FR   RO   ES   FI   HU   HR
 BE   SI   SE   NO   DK   TN
Üzleti feltételek
