Driveshaft Protection Caps

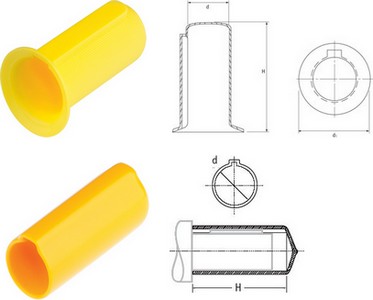

Typ 1 - Yellow LDPE. Protection and masking of driveshaft as well as the surrounding bearings. Fit driveshafts to DIN 748, IEC 600-72 and ISO R775.

Yellow LDPE
rendelési szám	To fit Metric Diameter d	méretek		db/csomag	ár/csomag/db	ár/db
rendelési szám	To fit Metric Diameter d	d1	H	db/csomag	ár/csomag/db	ár/db
467003	9	14,5	25	500 db	133 HUF	213 HUF
467004	10	16	30	500 db	92 HUF	152 HUF
467005	11	17,5	30	500 db	94 HUF	188 HUF
467006	14	22,5	35	500 db	130 HUF	213 HUF
467007	15	25,5	35	500 db	133 HUF	217 HUF
467008	16	25,5	50	500 db	153 HUF	253 HUF
467009	19	30,5	50	400 db	234 HUF	272 HUF
467010	20	32	60	250 db	191 HUF	313 HUF
467011	22	35,5	60	250 db	200 HUF	330 HUF
467012	24	38,5	60	200 db	217 HUF	355 HUF
467013	25	40	70	200 db	234 HUF	319 HUF
467014	28	45	70	150 db	250 HUF	344 HUF
467015	30	48	95	100 db	330 HUF	542 HUF
467016	32	51	95	100 db	345 HUF	566 HUF
467017	35	56	95	100 db	397 HUF	656 HUF
467018	38	61	95	100 db	359 HUF	592 HUF
467019	42	67	130	75 db	572 HUF	936 HUF
467020	45	72	130	50 db	613 HUF	1006 HUF
467021	48	77	130	100 db	655 HUF	1291 HUF
467022	55	88	130	100 db	631 HUF	1039 HUF
467023	60	96	165	75 db	805 HUF	1586 HUF
467024	65	104	165	75 db	889 HUF	1456 HUF
467025	70	108	165	75 db	936 HUF	1536 HUF
467026	75	112	165	75 db	1222 HUF	2008 HUF

Typ 2 -Yellow Flexible PVC. Resistant to rearing, splitting, oil and most chemicals. Fit driveshafts to DIN 748, IEC 600-72 and ISO R775

rendelési szám	To fit Metric Diameter d	méretek		db/csomag	ár/csomag/db	ár/db
rendelési szám	To fit Metric Diameter d	D	H	db/csomag	ár/csomag/db	ár/db
SPWJ-09	9	9	50	1500 db	78 HUF	128 HUF
SPWJ-10	10	10	50	1500 db	78 HUF	128 HUF
SPWJ-11	11	11	50	1500 db	105 HUF	170 HUF
SPWJ-14	14	14	50	1500 db	105 HUF	175 HUF
SPWJ-15	15	15	50	1000 db	142 HUF	233 HUF
SPWJ-16	16	16	60	1000 db	158 HUF	259 HUF
SPWJ-19	19	19	60	1000 db	144 HUF	234 HUF
SPWJ-20	20	20	60	1000 db	153 HUF	250 HUF
SPWJ-22	22	22	70	750 db	166 HUF	328 HUF
SPWJ-24	24	24	70	750 db	166 HUF	328 HUF
SPWJ-25	25	25	70	500 db	188 HUF	308 HUF
SPWJ-28	28	28	80	500 db	259 HUF	422 HUF
SPWJ-30	30	30	80	400 db	233 HUF	378 HUF
SPWJ-32	32	32	100	250 db	328 HUF	542 HUF
SPWJ-35	35	35	100	200 db	353 HUF	578 HUF
SPWJ-38	38	38	100	200 db	320 HUF	523 HUF
SPWJ-42	42	42	130	150 db	731 HUF	1202 HUF
SPWJ-45	45	45	130	150 db	967 HUF	1586 HUF
SPWJ-48	48	48	130	100 db	1291 HUF	1769 HUF
SPWJ-55	55	55	130	100 db	909 HUF	1494 HUF
SPWJ-60	60	60	140	100 db	1384 HUF	2286 HUF
SPWJ-65	65	65	140	100 db	1291 HUF	2116 HUF
SPWJ-70	70	70	140	100 db	1405 HUF	2308 HUF
SPWJ-75	75	75	140	100 db	2108 HUF	3300 HUF

Az árak áfa nélkül értendőek, és a rendeléskor történő fizetésre vonatkoznak.
