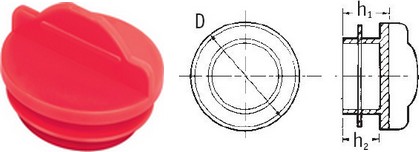

Snap-Fit Plugs
Single turn gives tight fit once pushed into position.
| rendelési szám | For thread | méretek | db/csomag | ár/csomag/db | ár/db | ||||
|---|---|---|---|---|---|---|---|---|---|
| Metric | BSP/GAS | UNF/JIC | h1 | D | h2 | ||||
| 10530 | M10 | 1/8" | 7/16" | 6 | 9,8 | 4 | 12000 db | 34 HUF | 56 HUF |
| 12363 | M12,M13,M14 | 1/4" | 1/2" | 7 | 13,1 | 5 | 10000 db | 30 HUF | 47 HUF |
| 12364 | M16 | 3/8" | 5/8" | 7 | 16,5 | 5 | 10000 db | 39 HUF | 63 HUF |
| 10314 | M18 | - | 3/4" | 9 | 18,3 | 7 | 7000 db | 55 HUF | 73 HUF |
| 12365 | M20 | 1/2" | - | 9 | 21,3 | 7 | 5000 db | 48 HUF | 100 HUF |
| 12366 | M22 | 5/8" | 7/8" | 9 | 22,4 | 7 | 5000 db | 55 HUF | 91 HUF |
| 12621 | M24 | - | - | 9 | 23,5 | 7 | 3000 db | 56 HUF | 95 HUF |
| 12367 | M25,M26 | 3/4" | 1 1/16" | 9 | 25,5 | 7 | 2000 db | 56 HUF | 95 HUF |
| 12368 | M28 | 7/8" | 1 1/8" | 9 | 27,9 | 7 | 3000 db | 73 HUF | 119 HUF |
| 12369 | M32 | 1" | 1 5/16" | 9 | 32 | 7 | 2500 db | 56 HUF | 95 HUF |
| 12622 | M36 | 1 1/8" | 1 1/2" 1 3/8" | 9 | 35,7 | 7 | 2000 db | 100 HUF | 161 HUF |
| 12598* | M40,M42 | 1 1/4" | 1 5/8" | 9 | 41,5 | 7 | 2000 db | 59 HUF | 97 HUF |
*Pull-tab not as illustrated.
Az árak áfa nélkül értendőek, és a rendeléskor történő fizetésre vonatkoznak.
