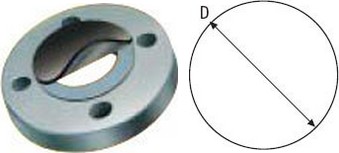

Self-Adhesive Flange Discs
Black Rubber. Provide full flange face protection. Protect both DIN and ANSI flange specifications. Ozone and weather resistant. Withstand temperatures up to +100°C. Resistant to petrol, oil and non-oxidisation acids. Available with holes for internal bore sand blasting. Standard thickness 1,5 mm.
| rendelési szám | átmérő [mm] | Disc Diameter | ár/db |
|---|---|---|---|
| 48326 | 1/2" | 36 | 134 HUF |
| 48327 | 3/4" | 45 | 205 HUF |
| 48328 | 1" | 54 | 347 HUF |
| 48329 | 1 1/2" | 75 | 461 HUF |
| 48330 | 2" | 95 | 813 HUFč |
| 48331 | 3" | 130 | 1189 HUF |
| 48332 | 4" | 160 | 1911 HUF |
| 48333 | 5" | 200 | 2284 HUF |
| 48334 | 6" | 220 | 3406 HUF |
| 48335 | 8" | 275 | 5416 HUF |
| 48336 | 10" | 330 | 7797 HUF |
| 48337 | 12" | 390 | 11025 HUF |
| 48338 | 14" | 415 | 12463 HUF |
| 48339 | 16" | 475 | 16519 HUF |
| 48340 | 18" | 540 | 21363 HUF |
| 48341 | 20" | 590 | 25497 HUF |
| 48342 | 24" | 700 | 35870 HUF |
All ANSI flange discs suitable for series pressure group (lbs) 150, 300, 400, 600, 900, 1500 and 2500.
| rendelési szám | átmérő [mm] | Disc Diameter | Series Pressure Group (Bar) | ár/db |
|---|---|---|---|---|
| 48311 | DN 10 | 40 | 6,10,16,25,40,64 | 114 HUF |
| 48312 | DN 15 | 45 | 6,10,16,25,40,64 | 172 HUF |
| 48313 | DN 20 | 58 | 6,10,16,25,40,64 | 327 HUF |
| 48314 | DN 25 | 68 | 6,10,16,25,40,64 | 372 HUF |
| 48315 | DN 32 | 78 | 6,10,16,25,40,64 | 538 HUF |
| 48316 | DN 40 | 88 | 6,10,16,25,40,64 | 608 HUF |
| 48317 | DN 50 | 102 | 6,10,16,25,40,64 | 922 HUF |
| 48318 | DN 65 | 122 | 6,10,16,25,40,64 | 1216 HUF |
| 48319 | DN 80 | 138 | 6,10,16,25,40,64 | 1356 HUF |
| 48320 | DN 100 | 158 | 6,10,16,25,40,64 | 1641 HUF |
| 48321 | DN 125 | 188 | 6,10,16,25,40,64,100,160 | 2463 HUF |
| 48322 | DN 150 | 212 | 6,10,16,25,40,64,100,160 | 2166 HUF |
| 48323 | DN 200 | 268 | 6,10,16,25,40,64,100,160 | 3131 HUF |
For information about stock availability please contact sales department.
Az árak áfa nélkül értendőek, és a rendeléskor történő fizetésre vonatkoznak.
