afigo.hu » Plastic Parts » Caps and Plugs » Threaded Sealing Caps
Threaded Sealing Caps

Threaded Sealing Caps

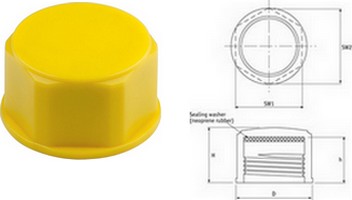

Material: Yellow HDPE. Tough HDPE material reduces potential shearing. Internal neoprene rubber sealing disk, which limits fluid leakage. Recommended to be tightened by hand. Hexagonal head anables the cap to be applied or removed by spanner or socket at low torque.

Metric
rendelési számFor threadméretekdb/csomagár/csomag/dbár/db
DHhSW1SW2
467033M8x112.013.011.010.011.050055 HUF91 HUF
467034M10x114,213.011.012.013,250055 HUF91 HUF
467035M12x116,513.011.014.015,450075 HUF120 HUF
467036M12x1,516,515.013.014.015,450075 HUF122 HUF
467037M14x1,518,515.013.016.017,550067 HUF111 HUF
467038M16x1,521.015.013.018.019,750075 HUF120 HUF
467039M18x1,523.015.013.020.021,950094 HUF130 HUF
467040M20x1,525.015.013.022.024,150094 HUF130 HUF
467041M22x1,527,515.013.024.026,325094 HUF130 HUF
467042M24x1.530.015.013.026.028,5250122 HUF200 HUF
467043M25x1.531.015.013.027.029,6250105 HUF172 HUF
467044M26x1.532.015.013.028.030,7250105 HUF172 HUF
467045M28x1.534.015.013.030.032.9250119 HUF189 HUF
467046M30x1.536.515.013.032.035.1250158 HUF217 HUF
467047M30x236.517.015.032.035.1250158 HUF217 HUF
467048M36x1.544.516.014.039.042.8100241 HUF394 HUF
467049M36x244.518.016.039.042.8100302 HUF413 HUF
467050M42x251.018,516.045.049.4100292 HUF480 HUF
467051M45x1.554.516,514.048.052.6100369 HUF506 HUF
467052M45x254.518,516.048.052.6100369 HUF505 HUF
467053M52x262.018,516.055.060.3100403 HUF664 HUF


UNF
rendelési számFor threadméretekdb/csomagár/csomag/dbár/db
DHhSW1SW2
4670541/4x2810.013,511,58.08,850056 HUF92 HUF
4670553/8x2413.014,512,511.012,150056 HUF92 HUF
4670567/16x2415,514,512,513.014,350075 HUF122 HUF
4670577/16x2015,515.013.013.014,350075 HUF122 HUF
4670581/4x2817,515.013.015.016,550075 HUF122 HUF
4670599/16x1818,515,513,516.017,550075 HUF120 HUF
4670605/8x1821.015,513,518.019,750075 HUF120 HUF
4670613/4x1624.016,514,521.023.050094 HUF130 HUF
46706213/16x1626,516,514,523.025,250091 HUF147 HUF
4670637/8x1827,515,513,524.026,350091 HUF147 HUF
4670647/8x1427,517,515,524.026,325094 HUF158 HUF
4670651x1431.017,515,527.029,6250105 HUF172 HUF
4670661 1/16x1234.518,516,530.032.9250122 HUF200 HUF
4670671 3/16x1236.518,516,532.035.1250158 HUF217 HUF
4670681 5/16x1241.018,516,536.039.5250225 HUF303 HUF
4670691 3/8x1243.018,516,538.041.7250231 HUF378 HUF
4670701 7/16x1245.518,516,540.043.9250263 HUF431 HUF
4670711 5/8x1251.019.016,545.049.4100281 HUF461 HUF
4670721 3/4x1654.517.014,548.052.6100302 HUF494 HUF
4670731 7/8x1259.019.016,552.057.0100383 HUF630 HUF


BSP
rendelési számFor threadméretekdb/csomagár/csomag/dbár/db
DHhSW1SW2
4670741/8x2814.013.011.012.013,250056 HUF92 HUF
4670751/4x1917,515.013.015.016,550073 HUF119 HUF
4670763/8x1922.015.013.019.020,850084 HUF139 HUF
4670771/2x1425.017.015.022.024,150091 HUF148 HUF
4670785/8x1429.017.015.025.027,4500122 HUF200 HUF
4670793/4x1432.017.015.028.030,7250130 HUF214 HUF
4670807/8x1436.017.015.032.035.1250152 HUF247 HUF
4670811x1141.019.017.036.039.5250225 HUF369 HUF
4670821 1/4x1151.019.017.045.049.4250367 HUF603 HUF
4670831 1/2x1156.019,517.050.054.8100422 HUF691 HUF
4670842x1171.019,517.063.069.1100580 HUF948 HUF
4670852 1/4x1180.019,517.070.076.8100653 HUF1072 HUF
4670862 1/2x1190.019,517.080.087.7100861 HUF1414 HUF


Az árak áfa nélkül értendőek, és a rendeléskor történő fizetésre vonatkoznak.
