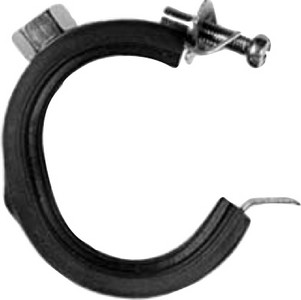

Single-screw pipe clamp, type M8 clamping head
Surface finish: galvanic zinc plated. Single-screw pipe clamp system is equipped with a quick-clamping catch fastener for easy, fast and safe mounting. It is characterized by sufficient stiffness and good anticorrosive protection. Use: steel pipes, copper pipes, glass pipes, plastic pipes. Field: sanitary and heating installations; gas distribution systems, air conditioning systems and others. Use within temperature range: -40 °C to +110 °C . We supply smaller quantities than the bag.
| rendelési szám | External diameter of the pipe | DN (mm) | Screw | K (mm) | L (mm) | T (mm) | Quantity db/csomag | ár/db | ||
|---|---|---|---|---|---|---|---|---|---|---|
| d(mm) | (mm) | (mm) | ||||||||
| OJEDSW100010012 | 10,8 | 10-12 | 1/8" | 6 | M5x25 | 20 | 41 | 1 | 100 db | 129 HUF |
| OJEDSW100012016 | 14,2 | 12-16 | 1/4" | 8 | M5x25 | 20 | 48 | 1 | 100 db | 136 HUF |
| OJEDSW100017019 | 17,7 | 17-19 | 3/8" | 10 | M5x25 | 20 | 51 | 1 | 100 db | 141 HUF |
| OJEDSW100020023 | 22 | 20-23 | 1/2" | 15 | M5x25 | 20 | 57 | 1 | 100 db | 154 HUF |
| OJEDSW100025030 | 27,5 | 25-30 | 3/4" | 20 | M5x25 | 20 | 71 | 1 | 100 db | 168 HUF |
| OJEDSW100031038 | 34,3 | 31-38 | 1" | 25 | M5x25 | 20 | 65 | 1 | 100 db | 183 HUF |
| OJEDSW100040046 | 43 | 40-46 | 5/4"(1 1/4") | 32 | M5x25 | 20 | 79 | 1 | 100 db | 192 HUF |
| OJEDSW100048053 | 48,9 | 48-53 | 6,4"(1 1/2") | 40 | M5x25 | 20 | 88 | 1 | 50 db | 211 HUF |
| OJEDSW100060064 | 63 | 60-64 | 2" | 50 | M5x25 | 20 | 100 | 1,2 | 50 db | 290 HUF |
Az ár nem tartalmazza az ÁFA-t és csak utánvételes fizetés esetén érvényes. Amennyiben meg lett adva a megrendelési szám, kérjük tüntesse azt fel a kiválasztott árunál. Szállítás tól 2175 HUF.
